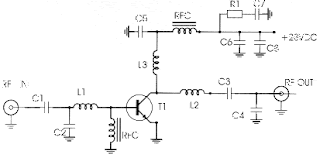

This design is a 2 stage amplifier that has about 17db of gain, suitable for an input of 50 to 100 MW. Its basically a Veronica 5 watt vco transmitter, without the vco. The transistors are a 2N4427 and a MRF237. Output power is 2.5 to 5 watts, depending on input drive and dc voltage. At 13.7 vdc with 50 MW of drive, the output was 2.5 watts. The maximum dc voltage recommended is about 15-16 volts.

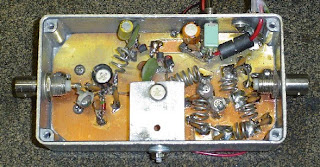

5 Watt FM Amplifier
This design is a 2 stage amplifier that has about 17db of gain, suitable for an input of 50 to 100 MW. Its basically a Veronica 5 watt vco transmitter, without the vco. The transistors are a 2N4427 and a MRF237. Output power is 2.5 to 5 watts, depending on input drive and dc voltage. At 13.7 vdc with 50 MW of drive, the output was 2.5 watts. The maximum dc voltage recommended is about 15-16 volts.
1.3W VHF RF Amplifier 2SC1970 88-108 MHz
This RF power amplifier is based on the transistor 2SC1970 and 2N4427. The output power is about 1.3W and the input driving power is 30-50mW. It will still get your RF signal quit far and I advice you to use a good 50 ohm resistor as dummy load. To tune this amplifier you can either use a power meter/wattmeter, SWR unit or you can do using a RF field meter.
50W Linear FM Amplifier with BLY90
This RF FM Amplifier is always essential for the amateur that wants it strengthens some small transmitter. The present circuit of BLY90 can give 50-60W power out with input control 15-20W in FM band II 88-108 MHz.FM amplifier schematic Circuit

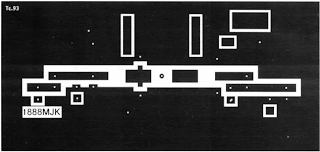

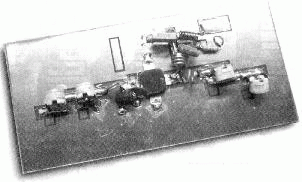

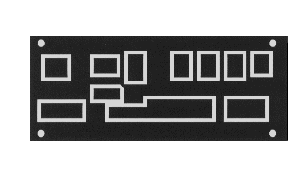

Printed Circuit Board
FM Amplifier Parts List
C1-C4 = 10-80pF
C5 = 10nF
C6 = 1000pF
C7 = 100nF
C8 = 2200mF/35V
TR1 = BLY90
L1 = 1 Turn of diameter of 10mms, 1mm
L2 = 7 Turns of diameter of 10mms, 0,8mms
L3 = 3 Turns of diameter of 10mms, 1mm
Source: 50W FM Amplifier BLY90
25W FM radio amplifier circuit schematic
FM radio amplifier 25W
A simple 25W fm radio amplifier used as a final stage for a 2.5W transmitter. I has a total gain of 10 dB and needs a 12V / 3A power supply. It is equiped with KT925W or BLY88, BLY89C. Use a very good headsink because this transistor get very hot :)
Solar charger
Coils values:
L1 = L3 = 4 turns / 1.5mm / 8mm / 10mm long
L2 = 4 turns / 1mm/6mm/10mm long
L4 = 20 turns / 0.8mm / on 22Ω resistor
15W FM RF Amplifier with 2SC2539 circuit diagram
This is a FM RF amplifier which build based on RF Power Transistor 2SC2539.
2SC2539 is a silicon NPN epitaxial planar type transistor designed for RF power amplifiers in VHF band mobile radio applications.circuit diagram:
L1: 2T Coil diameter:4mm
L2: in series 6pcs Toroidal ring
L3: 4T Coil diameter:10mm
L1: 3T Coil diameter:10mm
FEATURES
High power gain: Gpe >= 14.5 dB at Vcc=13.5V, Pout = 14W and f=175MHz
Emitter ballasted construction and gold metallization for high reliability and good performances
Low thermal resistance ceramic package with flange
Ability of withstanding more than 20:1 load VSWR when operated at Vcc=15.2V, Pout=18W, f=175MHz, Tc=250C
Download the datasheet of RF Power Transistor 2SC2539 thank you for the circuit
2SC2539 is a silicon NPN epitaxial planar type transistor designed for RF power amplifiers in VHF band mobile radio applications.circuit diagram:
L1: 2T Coil diameter:4mm
L2: in series 6pcs Toroidal ring
L3: 4T Coil diameter:10mm
L1: 3T Coil diameter:10mm
FEATURES
High power gain: Gpe >= 14.5 dB at Vcc=13.5V, Pout = 14W and f=175MHz
Emitter ballasted construction and gold metallization for high reliability and good performances
Low thermal resistance ceramic package with flange
Ability of withstanding more than 20:1 load VSWR when operated at Vcc=15.2V, Pout=18W, f=175MHz, Tc=250C
Download the datasheet of RF Power Transistor 2SC2539 thank you for the circuit
RF power amplifier 80W by C2782
This is a pretty conventional design, using bipolar transistors in a tuned class C circuit. Thanks to the use of two stages, the amplifier can be driven to full power with less than 1 watt driving power, so that a large gain margin results in this transmitter.Bipolar VHF power transistors have a severe affinity for low frequency self-oscillation. To obtain stability in this amplifier, I employed several techniques, such as placing the resonances of base and collector chokes far apart, damping the chokes with resistors, using RC combinations for absorption of unwanted frequencies, using feedtrough capacitors for bypassing on the board, etc. It took some tweaking, but the amplifier ended up unconditionally stable.
The impedance matching network between the two transistors calls for such a low inductance, that it would be impractical to make it with actual wire. So I used a micro stripline etched on the PCB. Also, the power and SWR sensor at the output was made with micro striplines.

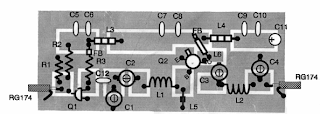

1 Watt Universal RF Amplifier
This is a universal 1 Watt RF class C amplifier that is ideally suited for low power FM transmitters. Input should be at least 100mW to achieve 1W output. It is recommended to enclose the amplifier in a metal case.Read More Source:
http://electronics-diy.com/1W_Universal_RF_Amplifier.php
Thank you.
A Design for a 40W broadband VHF RF Power Amplifier for FM broadcast
Performance summary
40W min output power
88 to 108 MHz frequency range, broadband
20dB gain
+28V DC operation
High efficiency
Low component count
Integrated 7 pole Chebyshev low pass harmonic filter (LPF)
Single MOS FET gain stage in class AB
Introduction
What this design is for
To boost the output power of low power FM broadcast band exciters, a number of these are available commercially, both as kits and ready made. See How to be a Community Radio Station for links to reviews of some of the more popular exciters.
Who is this design for?
Those who are familiar with the RF electronics and mechanical constructional techniques
Those who have already successfully constructed and tested VHF power (> 10W) amplifiers
For reference, see Introduction to Community Radio Station Electronics
The following test equipment will be required to tune the amplifier:
Stabilised current limited power supply (+28V, 3A)
Multimeter, with 3A or greater current range
50W VHF Dummy Load
RF Power Meter
FM exciter, with approx. 26 - 27 dBm output power
RF Spectrum Analyser
RF Network Analyser or a spectrum analyser with tracking generator
RF power attenuator
This design is NOT suitable for beginners and VHF RF novices. These people run the following risks:
Thermal and RF burns
Electrocution
Destruction of expensive RF components and test equipment
Unwanted spurious RF radiation, resulting in interference to other users of the electromagnetic spectrum, thus risking a visit from the state, and consequent risk of equipment confiscation, fines, and possibly imprisonment.
A great deal of stress and frustration.
Why this design is necessary
I believe the quality of the vast majority of schematics and designs for FM broadcast equipment available on the internet to be far from satisfactorily. See my advice on building from plans on the web. In particular the information available on VHF RF power amplifiers is even more desperate, for example designs using dinosaurs of devices such as the TP9380. This design is based on a new MOSFET device, with the attendant advantages of
high gain
high efficiency
ease of tuning
Seeing as most of the designs on the web are over 10 years old, using a recently introduced device should maximise the useful life of the design. I also use this design as a vehicle to demonstrate the amount of information required for a third party not equipped with mind-reading skills to successfully build this amplifier. The point is this: if a person is sufficiently skilled and experienced to build something from scanty design information, for instance just a schematic, they are just as able to build it from no information at all. Conversely, a person not at that skill and experience level will require detailed instructions to succeed.
--------------------------------------------------------------------------------
Design Procedure
The amplifier design is based on the recently introduced (1998) Motorola MRF171A MOSFET (MRF171A data sheet in PDF format).Do not confuse this with the older, now discontinued, MRF171 device. January 2002 - Motorola changes their RF power device product portfolio more oftern than some people change their underparts. It looks like Motorola have unloaded this device on to M/A-Com.
Computer Simulation
The initial feasibility was performed using a linear RF and microwave simulation package, specifically Supercompact. The version used was 6.0, which quite frankly I consider a piss-poor piece of software and don't recommend at all. For this device, Motorola provide S parameters and large signal single ended impedances. The S parameters are measured at 0.5 A quiescent drain current, which represents a step forward in device characterisation, as traditionally S parameters tended to be measured at quite low drain currents. Whilst this is satisfactory for small-signal devices, the use of S parameters measured at small drain currents is limited for power amplifier design.
While the S parameter information measured at 0.5 A could have provided a useful design starting point, I choose to base the design on the single ended large-signal impedances. These are measured by the device manufacturer by tuning the device up for best performance at each test frequency in a generic test fixture. The test device is then removed, and a vector network analyser is used to measure the complex impedance looking back into the matching network, whilst these are terminated with 50 R. This procedure is carried out for the input and output matching networks. The advantage of large signal impedance data is that it can be measured at the actual output power that the device is designed to generate, and as such are more representative in a power amplifier scenario. Note the large-single impedances only provide information to enable an input and output matching network to be synthesised, they provide no information about the likely gain, efficiency, noise performance (if relevant) or stability of the resulting amplifier.
This is the file used to synthesise the input network.
* mrf171i1.ckt ;Name of file
* variable definition block, first value is minimum allowed value,
* third is maximum allowed value, middle is variable
C1: ? 1PF 30.2596PF 120PF ?
C2: ? 1PF 21.8507PF 120PF ?
L1: ? 1NH 72.7228NH 80NH ?
C3: ? 1PF 179.765PF 180PF ?
L2: ? 1NH 30.4466NH 80NH ?
BLK ;Circuit netlist
cap 1 2 c=c1
cap 2 0 c=c2
ind 2 3 l=l1
cap 3 0 c=c3
ind 3 9 l=l2
res 9 0 r=33 ;gate bias feed resistor
one 9 mrf171ip ;reference to 1 port data
IPNET: 1POR 1 ;create a new 1 port network
END
FREQ
STEP 88MHZ 108MHZ 1MHZ
END
OPT
* Optimisation control statement, tells simulator to optimise between
* 88 and 108 MHz, and to achieve a input return loss of better than
* -24 dB
IPNET R1 = 50
F = 88MHZ 108MHZ
MS11 -24DB LT
END
DATA
* Define a one port network called mrf171ip, referencing the large-signal
* series equivalent complex impedances. This data is available at 4
* frequency points
* Define Z parameter information, real and imaginary format,
* reference impedance is 1 Ohm
mrf171ip: Z RI RREF=1
* MRF171A Z SOURCE
30MHZ 12.8 -3.6
100MHZ 3.1 -11.6
150MHZ 2.0 -6.5
200MHZ 2.2 -6.0
END
Of course, the use of a simulator doesn't provide any assistance in the selection of circuit topology, nor the starting values for the network components. This information comes from design experience. All optimisation values have been constrained with maxima and minima to keep the resulting network realisable.
Initially, a 3 pole matching network was tried, this was not capable of providing a sufficiently broadband match across the 20 MHz. Using a 5 pole circuit allowed the optimisation goal to be achieved. Note the 33R gate bias is included in the simulation, as this helps de-Q the input network, and improves the stability in the final amplifier.
A similar procedure was performed for the output network. In this simulation, the drain feed was included in the simulation. Although on the face of it, the value of this choke is not critical, if it gets too large stability can be comprised, if it gets too small, it becomes part of the output matching network, which in this case was thought not be desirable.
Component choices
As the input power is only half a watt, standard ceramic capacitors and trimmers were used in the input matching circuit. L1 and L2 (refer to schematic) could have been made much smaller, but were kept big for consistency with the inductors used in the output network. On the output network, mica metal clad capacitors and mica compression trimmers were used to handle the power and keep component losses to a minimum. The wideband choke L3 provides some lossy reactance at lower RF frequencies, C8 takes care of AF (audio frequency) decoupling.
The use of an enhancement mode N-channel MOSFET (a positive voltage biases the device into conduction) means the bias circuitry is simple. A potential divider taps off the required voltage from a low voltage stabilised by a 5.6V zener diode. The second 5.6V zener, D2, is fitted as a precautionary measure to ensure excessive voltage are not applied to the gate of the FET, this would certainly result in the destruction of the device. Purists would temperature stabilise the bias current, but as the bias is not critical in this application, this was not bothered with.
A BNC socket had been used for the RF input, due to the low RF input power. I've used N type for the RF output, I don't use BNC for above about 5W and I don't like UHF style connectors. Personally, I don't recommend using UHF connectors above 30MHz.
--------------------------------------------------------------------------------
Construction
The amplifier was constructed in a small aluminium diecast box. RF input and output connections are made by coaxial sockets. The power supply is routed through a ceramic feedthrough capacitor bolted in the wall of the box. This constructional techniques results in excellent shielding, preventing RF radiation escaping from the amplifier. Without it, significant amounts of RF radiation could be radiated, interfering with other sensitive circuits such as VCOs and audio stages, also significant amounts of harmonic radiation could occur.
The base of the power device sits through a cut-out in the floor of the diecast box and is bolted directly onto a small extruded aluminium heatsink. An alternative would have the base of the power device sitting on the floor of the diecast box. This is not recommended for two reasons, both concerned with providing an effective path to conduct heat from the FET. Firstly the floor of the diecast box is not particularly smooth, which results in a poor thermal path. Secondly, having the floor of the diecast box in the thermal path introduces more mechanical interfaces and hence more thermal resistance. Another advantage of the chosen constructional technique is that it correctly aligns the device leads with the top face of the circuit board.
Using the specified heatsink will require the use of forced air cooling (a fan). If you plan not to use a fan, a much bigger heatsink will be required, and the amplifier should be mounted with the heatsink fins vertical to maximise cooling by natural convection.

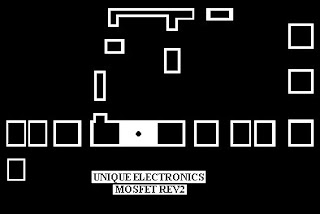

The circuit board consists of a piece of fibre glass PCB (printed circuit board) material clad with 1oz Cu (copper) each side. I used Wainwright to form the circuit nodes - this is basically self-adhesive bits of tinned single sided PCB material, cut to size with a hefty pair of side-cutters. An easy alternative is to use pieces of 1.6mm thick single sided PCB material, cut to size and then tinned. These are glued onto the ground plane with a cyanoacrylate type adhesive (e.g super-glue or Tak-pak FEC 537-044). This method of construction results in the top side of the PCB being an excellent ground plane. The only exception to this are the two pads for the gate and drain of the FET. These were created by carefully scoring the top layer of copper with a sharp scalpel, and then removing the slivers of copper with the assistance of a fine point soldering iron tip and the scalpel. Running the iron tip along the isolated piece of copper loosens the glue sufficiently for the Cu to be peeled off with the scalpel. The gate pad thus created is clearly visible in the photograph of the prototype
Having made the aperture in the PCB for the base of the power device to sit through, I wrapped copper tape through the slot to join the upper and lower ground planes. This was done in two places, underneath the source tabs. The copper tape was then soldered top and bottom.
See photograph for suggested component positions. The vertical screen to the right of the enclosure is a piece of double sided PCB material, soldered to the top ground plane on both sides. This is an attempt to improve the final harmonic rejection, by reducing coupling between the inductors that form the output match and the inductors making up the LPF. To do these kind of soldering jobs a 60W or greater soldering iron will be required - preferably a temperature controlled one. This iron will be too over the top for the smaller components so a smaller iron will be required as well.
As mentioned below, the LPF inductors are soldered directly to the tabs of the metal clad capacitors.
Suggested Rough and Ready Construction Procedure
Cut out a piece of double sided PCB material for the main board (approx. 100 x 85mm)
Create the aperture for the FET, using a selection of drills and files. Use the FET as a template, if required, but don't blow it up with static. Make sure you'll end up with the drain on the right side.
Drill six holes in the PCB, these are to hold the PCB to the diecast box
Place the PCB in the box and use the holes in the PCB to drill through the box
Temporarily screw the PCB to the box
Work out where the heatsink is going to go, underneath the box The device should end up towards the centre of the heatsink. Either drill some more holes through the whole lot, and re-use some of the existing PCB/box holes and extend these down through the heatsink. Temporarily screw the heatsink to the PCB/box assembly. When you look into the top of the box you should now see a piece of heatsink revealed, the same size as the base of the FET.
Rig yourself up some static protection (if you've got an old blown-up device or a bipolar device in the same package you won't have to bother with this) and drop the device into the aperture in the board.
Use the FET to give you give the centre positions of its' mounting holes
Take everything to bits again. Make two holes in the heatsink for the FET
Drill the holes in the two ends of the box for the RF connectors and the feedthrough capacitor
Tin the PCB, top and bottom, with a big iron. Use just enough solder to get a smooth finish but not too much to create raised areas of solder, especially on the bottom, as these will prevent the PCB sitting flat against the box floor.
Create the two islands for the FET gate and drain, as detailed in the above paragraph
Solder copper tape between top and bottom faces of the PCB underneath where the source tabs will be
Create the PCB islands, tin them, stick them on the PCB using the photograph as a guide
Create and fit the screen between the amplifier and the LPF areas
Fit all the remaining PCB components, with the exception of the FET
Fit the PCB to the box and the heatsink
Fit the and connect and the RF connectors and the feed-through capacitor
Taking anti-static precautions again, apply the thinnest continuous film possible of heat transfer paste to the base of the FET. This can be conveniently done with a wooden cocktail stick
Bend up the last 2mm of each of the FET's leads. This will make it much easier to remove, should the need arise
Screw the FET to the heatsink. Too loose and the device will over-heat, too tight and you will distort the flange of the device and once again it will overheat. If you've got a torque screwdriver, look up the recommended torque and use it.
If you've understood the instructions correctly, the tabs of the device will be fractionally above the PCB Solder the FET in with the big iron, first the sources, then the drain, finally the gate. You may have to disconnect L4 and L5 while you are fitting the FET, but don't disconnect R3 as this provides static protection for the device.
Schematic
Parts List
Reference Description FEC Part No. Quantity
C1, C2, C4 5.5 - 50p miniature ceramic trimmer (green) 148-161 3
C3 100p ceramic disc 50V NP0 dielectric 896-457 1
C5, C6, C7 100n multilayer ceramic 50V X7R dielectric 146-227 3
C8 100u 35V electrolytic radial capacitor 667-419 1
C9 500p metal clad capacitor 500V 1
C10 1n ceramic lead through capacitor capacitor 149-150 1
C11 16 - 100p mica compression trimmer capacitor (Arco 424) 1
C12 25 - 150p mica compression trimmer capacitor (Arco 423 or Sprague GMA30300) 1
C13 300p metal clad capacitor 500V 1
C14, C17 25p metal clad capacitor 500V 2
C15, C16 50p metal clad capacitor 500V 2
L1 64nH inductor - 4 turns 18 SWG tinned Cu wire on 6.5mm dia. former, turns length 8mm 1
L2 25nH inductor - 2 turns 18 SWG tinned Cu wire on 6.5mm dia. former, turns length 4mm 1
L3 6 hole ferrite bead threaded with 2.5 turns 22 SWG tinned Cu Wire to form wideband choke 219-850 1
L4 210nH inductor - 8 turns 18 SWG enamelled Cu wire on 6.5mm dia. former, turns length 12mm 1
L5 21nH inductor - 3 turns 18 SWG tinned Cu wire on 4mm dia. former, turns length 10mm 1
L6 41nH inductor - 4 turns 22 SWG tinned Cu wire on 4mm dia. former, turns length 6mm 1
L7 2 ferrite beads threaded onto lead of C10 242-500 2
L8, L10 100nH inductor - 5 turns 18 SWG tinned Cu wire on 6.5mm dia. former, turns length 8mm 2
L9 115nH inductor - 6 turns 18 SWG tinned Cu wire on 6.5mm dia. former, turns length 12mm 1
R1 10K cermet potentiometer 0.5W 108-566 1
R2 1K8 metal film resistor 0.5W 333-864 1
R3 33R metal film resistor 0.5W 333-440 1
D1, D2 BZX79C5V6 400mW Zener Diode 931-779 2
TR1 MRF171A (Motorola) 1
SK1 BNC bulkhead socket 583-509 1
SK2 N type panel socket, square flange 310-025 1
Diecast Box 29830PSL 38 x 120 x 95mm 301-530 1
Heatsink 16 x 60 x 89mm 3.4°C/W (Redpoint Thermalloy 3.5Y1) 170-088 1
Double sided Cu clad PCB material 1.6mm thick A/R
Copper Tape or Foil 152-659 A/R
M3 nut, bolt, crinkly washer set 16
Non-Silicone Heat Transfer Paste 317-950 A/R
Notes
1.Farnell Part Numbers are for guide only - other equivalent parts can be substituted.
2.Metal clad capacitors are either Semco MCM series, Unelco J101 series, Underwood, or Arco MCJ-101 series available from, amongst other places, RF Parts.
3.MRF171A available from BFI (UK), Richardson or RF Parts (US)
4.Arco or Sprague trimmers are available from Communication Concepts (US)
5.18 SWG (standard wire gauge) is approximately 1.2mm diameter
6.22 SWG (standard wire gauge) is approximately 0.7mm diameter
7.To make the inductors - wind the required number of turns round an appropriately sized former, initially use one wire diameter spacing between each turn. Then pull the turns apart to get the length required in the parts list table. Finally check the value using a network analyser and adjust accordingly.
8.The exception to the above spacing rule is L4, which is close wound.
9.Copper foil is available from craft shops (used in stained glass making)
10.A/R = as required
Photograph of Prototype Amplifier
Note orientation of the FET. The lead with the slash is the drain, and is to the right
--------------------------------------------------------------------------------
Low Pass Filter Testing
Any RF power amplifier must be followed by a low pass filter (LPF) to reduce the harmonics to an acceptable level. What this level is in a unlicensed application is a moot point, but as the output power is increased, more attention must be be paid to the harmonic suppression. For example, a 3rd harmonic of -30dBc on a 1W unit is 1uW, which is unlikely to cause any bother, whilst -30dBc 3rd harmonic suppression on a 1KW output results in a 1W of power at the third harmonic which is potentially problematic. So for the absolute level of harmonic radiation in the second example to be the same as the first, we now need to suppress the third harmonic by 60dBc.
In this design I made the decision to implement a 7 pole Chebyshev low pass filter. A Chebyshev was chosen as the phase and amplitude ripple within the passband was not critical, and the Chebyshev gives a better stop band attenuation than compared to say, a Butterworth. The design stopband was chosen to 113MHz, giving a 5MHz implementation margin from the highest desired passband frequency at 108MHz and the start of the stopband at 113MHz. The next critical design parameter was the passband ripple. For a single frequency design it is normal practice to choose a large passband ripple, for example 1dB, and tune the peak of the last passband maxima to the desired output frequency. This gives the best stopband attenuation because greater passband ripple results in more rapid stopband attenuation. A seven pole filter has 7 reactive elements, in this design four capacitors and three inductors. The more poles, the better the stopband attenuation, at the expense of increased complexity and more passband insertion loss. An odd number of poles is required as both the input and output impedance was designed to be 50R.
As this design is wideband, this constrains the passband ripple to a level such that the passband return loss does not become to horrible. Using the excellent Faisyn shareware filter design utility (available from FaiSyn RF Design Software Home Page) allows these trade-offs to be easily investigated, and I settled for a passband ripple of 0.02dB. This program also calculates the filter values for you, and outputs a netlist in a format suitable for inputting into the most popular linear circuit simulators. With 7 poles, the choice was available to use 4 capacitors and 3 inductors or 3 capacitors and 4 inductors. I chose the former, on the grounds that it results in one less component to wind. The capacitor values given from the faisyn program were examined to check that they were close to a preferred value, which they were. If they had fallen between preferred values, the options would include paralleling two capacitors together, which unnecessarily ups the component count, or subtly tweaking the stopband frequency and passband ripple to get a more desirable set of values.
To implement the filter, I decided to use standard size metal clad capacitors made by Unelco or Semco. The inductors were made from 18 SWG (standard wire gauge) tinned copper wire. In my experience there is little to be gained from using silver plated copper wire. The inductors were formed round of the centre of a standard RS or Farnell tweaking tool (FEC 145-507) - this has a diameter of 0.25 inch, 6.35mm. Otherwise use the appropriately sized drill bit. The outer two inductors were wound clockwise, the inner one was wound counter-clockwise. This is an attempt to reduce the mutual inductive coupling between the inductors, this tending to degrade the stopband attenuation. For the same reason the inductors are arranged at 90° to each other, rather than all in a straight line. The inductors are soldered directly to the tabs of the metal clad capacitors. This keeps losses to a minimum. A carefully constructed filter of this type can exhibit a passband insertion loss of better than 0.2dB. Here are the test results for the prototype unit.
Network Analyser plot
7 pole Low Pass Filter
600MHz span Network Analyser plot
7 pole Low Pass Filter
200MHz span Network Analyser plot
7 pole Low Pass Filter
20MHz span
Knowing the required values for the inductors, I made an educated guess based on experience as to how many turns I required, and then used a properly calibrated RF network analyser to measure the inductance of the inductor I had created. This is by far the most accurate way to determine the value of small value inductances, as the measurement can be made at the actual operating frequency of the filter. Having measured the value and adjusted the inductances accordingly, you should find that when the complete filter is constructed, surprisingly little adjustment is necessary to finalise the filter tuning.
The best way to tune this filter is to minimise the passband input return loss, using a network analyser. By minimising the input return loss you will minimise the passband transmission loss and passband ripple. The 20MHz span graph shows that I achieved a passband return loss of -18dB. If you don't have a network analyser, things are a bit trickier. If you just tuning up for a spot frequency, set up an RF power source to drive into the filter via a directional power meter. The filter is terminated with a good 50R load. Now monitor the reflected power coming back from the filter and tune the filter to minimise the reflected power. If you want wideband performance, you will have to try and do this at say, three frequencies, bottom, middle and top of the band. Alternatively, if you managed to measure you inductors well enough by other means, you could just assemble the filter and leave it at that, with no further adjustment.
Having tuned for minimum passband return loss, the stopband attenuation takes care of itself, you shouldn't tune for it as you will mess up the passband insertion loss. The 200MHz span graph shows I managed 36dB of rejection at the 2nd harmonic of 88MHz, which is the worst case. Referring to the 600MHz span graph shows the 3rd harmonic of 88MHz suppressed by -55dB, and the higher orders by an amount greater than this.
Amplifier Testing
I used a HP 8714C network analyser to tune this amplifier. Without access to a network analyser, you are have to going to be extremely inventive to tune for wideband performance. Having tuned the LPF, the next job is to set the FET bias. Do this with a spectrum analyser connected to the output (via an appropriate amount of attenuation, at least 40dB) to monitor for spurious oscillations. Connect a good 50R load to the input and connect a stabilised PSU (power supply unit) with a current limit set to 200mA.
Note: This amplifier will oscillate (non-destructively) if it is powered up with no RF input connected, or if any RF stages preceding the amplifier are not powered up.
Set all trimmers to centre of their range. With the miniature ceramic trimmers specified, when the half moon metallisation on the top plate of the trimmer is fully aligned with the flat on the trimmer body, the trimmer is at maximum capacitance. Rotate 180° from here for minimum capacitance. Set R1 for minimum voltage (experiment before you fit the FET if you don't know which way this is). Slowly increase the supply voltage from 0V up to +28V. The only current drawn should be that taken by the bias circuit, about 14mA. Now adjust R1 to add 100mA to that figure. There should be no sudden steps in the current taken from the PSU. If there are, the amplifier is almost certainly oscillating.
If all is well, switch off. Calibrate the network analyser. On the HP 8714C for this application I normalise S11 into a open circuit and do a through calibration on S21 with 40dB of attenuation in line. Obviously the attenuators used must be rated for at least 50W of RF at VHF frequencies.
Now life gets slightly complicated. Normally I'd recommend looking through the amplifier and LPF combination, but because the LPF break point is only 5MHz above the desired passband of the amplifier, it makes it impossible to see the response shape of the amplifier if this happens to be upband from 108MHz. For this reason I did the initial amplifier tuning with the LPF bypassed, which allowed me to set the network analyser span wide enough to see where the amplifier response was.
With 0dBm of drive, tweak away to get approximately 15dB of gain and better than 10dB of return loss across 88 to 108 MHz (small signal gain plot, Pin = 0 dBm). Now up the drive to the amplifier, backing off the current limit appropriately. You'll notice that as you increase the RF drive, the gain will increase and the input return loss will improve. This behaviour is a consequence of biasing the FET comparatively lightly. You could bias the nuts out of the FET, and bias it at, say 0.5A, this will give you more gain at lower drive levels. For normal applications I recommend using a lower bias. A high bias at small output levels will reduce the DC to RF efficiency.
You will now need to fan cool the amplifier, unless you have fitted it with an enormous heatsink. With the HP 8714C you can get +20dBm source power (that's what it says on the screen, it's actually less than that) (medium signal gain plot, Pin = +20 dBm). With this level of drive you can now tune for 18 to 20dB of gain and return loss better than 15dB. At this point I'd reconnect the LPF and narrow the network analyser span to 20MHz centred on 98MHz. Driving the amplifier above 108MHz at power into the LPF is certainly not recommended. Before you get too carried away switch to CW (best to lengthen the sweep sweep to several seconds on CW to avoid being confused by the analysers sweep fly-back) and have a look at the output on the spectrum analyser. The output should be clean as the driven snow, do remember to check the output is at at the frequency you're exciting the amplifier with, if it isn't you will be looking at an horrendous in-band oscillation.
For the final power flatness tuning, because I had access to a smart RF laboratory with everything you could possibly require (test equipment wise, anyway) I used a Mini-Circuits ZHL-42W wideband amplifier to boost the output of the network analyser to enable me to tune the amplifiers' gain response flat at full output power. The final gain plot was taken by setting the source power appropriately, and then doing a through calibration with the Mini-Circuits amplifier and the power attenuators in-line. This allowed me to plot just the gain of the power amplifier. I then switched to slow sweep and used a calibrated RF power meter to accurately measure the RF output power. Knowing the RF output power and gain accurately allowed me to calculate the input power to the power amplifier. This plot shows the power gain is a shade under 20dB and about 0.3dB flat across the band (large signal gain plot, Pin = +26.8 dBm). In conjunction with the flatness tuning, the efficiency should be checked. I managed a minimum of 60% at 88MHz at 40W out, improving with higher output powers. I would say that good efficiency is more important than good flatness. From the listeners point of view, the difference between 35W and 45W output is negligible, but running a lower power with a good efficiency means the FET will run cooler, last longer and be more resilient to fault conditions like a high VSWR.
What output power you choose to finally run is up to you, the MRF171A will happily run at least 45W and probably a lot more, though I don't recommend it. Around 40 to 45W is plenty - see How to Keep your Final RF Power Device Alive for more information.
Amplifier Results
No harmonics could be measured at the output of the amplifier down to a noise floor of -70dBc. This is to be expected, as a quick investigation showed the raw harmonics of the amplifier before the LPF to about -40dBc. The filter has already been demonstrated to have a minimum 2nd harmonic suppression of -35dBc. No spurious output were visible.
No formal measurements were made with bad output VSWRs. I did accidentally run the amplifier at full power into an open circuit for a few seconds, and it didn't blow up. Using a PSU with a carefully set current limit will help prevent the amplifier doing anything stupid under these conditions.
--------------------------------------------------------------------------------
Application
As an example of an application for this amplifier I used the Broadcast Warehouse 1W FM LCD PLL Exciter to drive the 40W broadband amplifier. To avoid modifying the Broadcast Warehouse unit, I used a laboratory 3dB BNC pad between the exciter and the power amplifier, to provide the right drive level to the amplifier. The exciter was programmed for three different frequencies, at each frequency the output power and current consumption measured, allowing the DC to RF efficiency to be calculated.
Power Amplifier supply voltage = 28V
Exciter supply voltage = 14.0V, Exciter current consumption = 200 mA approx.
Frequency
(MHz) Current Consumption
(A) Pout
(W) DC to RF efficiency
(%)
87.5 2.61 48 66
98.0 2.44 50 73
108.0 2.10 47 76
The Broadcast Warehouse exciter incorporates an out of lock RF shutdown facility, used during PLL reprogramming so that RF is not generated until frequency lock has been regained. When the exciters' RF shutdown was active, the amplifier output was similarly reduced - i.e. the amplifier remained stable.
--------------------------------------------------------------------------------
Conclusion
I have demonstrated a wideband amplifier, that once tuned, requires no further adjustment to cover the 87.5 to 108MHz FM broadcast band. The design uses a state-of-the-art MOSFET providing nearly 20dB of gain with a single stage, has good DC to RF efficiency, low component count, and is simple to build. The parts cost should not exceed £50, the FET used in the prototype cost less than £25
If this amplifier is used with a broadband exciter and aerial, the resulting combination allows the user to switch transmitting frequency at will with no adjustments necessary anyway in the transmit chain.
The amplifier requires a fair degree of RF power experience to tune, and access to professional RF test equipment
--------------------------------------------------------------------------------
Future Work
Build additional units to assess repeatability
Design printed circuit board
Improve stability under bad input mismatch conditions
Reduce variable component count
Investigate varying FET bias current to modify amplifier gain
Dang my boots - someone else out there has built the damn thing and written it up. Please see http://www.geocities.com/Area51/Nebula/3736/40watt.html
--------------------------------------------------------------------------------
Contributed
Contributed by Unique Electronics (Woody and Alpy)
"Here's a PCB for the MRF171A, 45 watt mosfet, on your page.
The file is in bmp format. Use laser film and a laser printer, it will print to size."

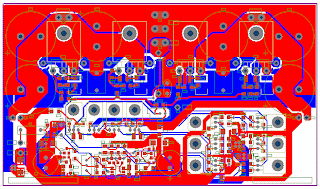

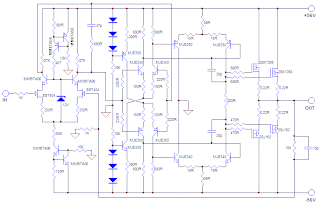

100W HiFi MOSFET Amp
100W HiFi MOSFET Amp100W HiFi MOSFET Amp
The neat thing about the series 5000 is that it was built around new (at the time) Hitachi lateral power MOSFETs. Most power MOSFETs (VMOS, trenchFETs, HexFETs etc) use a vertical structure, where the current flows vertically. This has the advantage of stunningly low Rds and hence high efficiency, but does nothing for linearity or capacitance. Lateral MOSFETs are a much simpler structure, where the gate oxide is formed on a flat substrate, and the current flows across the substrate. This results in well defined, controllable device parameters, good linearity, and relatively low gate capacitance. However, the Rds of lateral MOSFETs is nothing to write home about.
MOSFETs also have a high input impedance at low frequencies, and are capable (when driven by a suitable source) of extremely high slew-rates. Of course this very attribute makes them rather prone to HF oscillation when improperly compensated, but with careful design they're capable of impressive intermod performance.

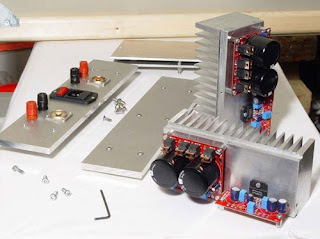

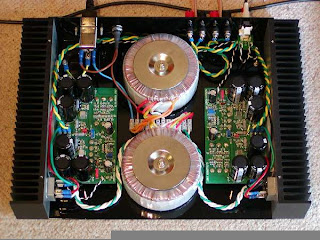

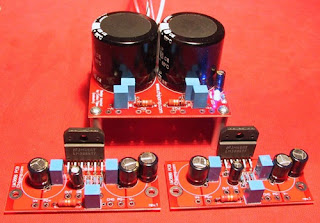

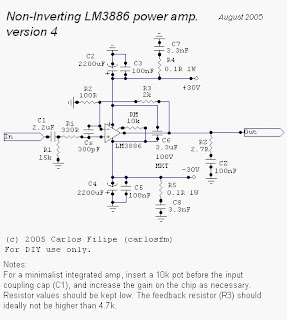

LM3886 Power Amp with DIY Chassis
LM3886 Power Amp with DIY Chassis
This is a simple chassis using just 4 aluminum panels and 2 heatsinks. Designed around dimensions to tightly pack in a LM3886 chip amp kit. The top and bottom panels sit in ridges cut into the heatsinks with a table saw, and then the front and back panels just bolt into the end fins. Rear panel fixings are held with M3 nut and bolts, and panels that join to the heatsinks are held by M4 bolts tapped directly into the heatsinks so no additional brackets are required. Heatsinks are 75 x 160 x 50mm with a 10mm thick base.
VCO I
This is a very cool VCO of professional FM transmitter. I am sure the design itself gives some ideas to you as how to design VCOs.
Discuss this schematic in our Forum!
VCO II
Another VCO. It is originally made for 2m station, but is perfect for FM radio band as well. The mosfet serves as PLL mixer. If you want to use direct synthesis method, change this mosfet into buffer. Very clean signal, but it is narrowband. It has to be tuned every time you change frequency.Discuss this schematic in our Forum!
FET FM transmitter schematic
This FM transmitter makes for a nice project. No PLL, but stability is excellent. Does have spectral purity problems, though'. An additional filter is recommended. Giving some 400-1000mW.Discuss this FM transmitter schematic in our Forum!
World's simplest FM transmitter schematic, period.
If you cannot assemble this transmitter, then perhaps you should give up on assembling anything at all;-) Range and stability is not premium, but it works! Its a demonstration of what can be done with little to none resources. Please, don't bother asking how you could increase the power of this small FM transmitter.
Discuss this FM transmitter schematic in our Forum!
2W FM transmitter schematic
This is a bit more complicated transmitter, but gives a mile of range or so. You have to understand that it radiates god knows where, you will be making a lot of interference! This is probably the simplest 2W FM transmitter out there. Keep those two transistors cool, they can die quickly in this circuit. Don't forget that there is no such thing as a free lunch, stability and spectral purity suck. But range is significant (watch those feds).
1W PLL FM transmitter schematic
Cool little FM transmitter. Suitable for study purposes, you can use the RF part of this transmitter easily for your projects. However, unless you know how to build a serial data link and connect this LPFM transmitter to a PC or a microcontroller, you won't be able to use the PLL. All info about the PLL is available at Plessey's web page.
1.2 Watt Bullet Proof Amp For The FM-10 or FM-25
By Mycal
The follwing is a very easy to build amplifier that was designed to follow a Ramsey FM-10 and FM-25 transmitter. It is built on top of a simple PCB board surface style (all parts tacked on top, no holes in PCB.) The performance is excellent with power levels of up to 1.5 watts achevable and harmonic suppression greater than 50db. Using this amp in conjunction with an Ramsey FM-10/25 can provide you with the ideal micro power radio station with usable range of up to 2 miles or more. If you use this unit to amplify a Ramsey FM-25, build the FM-25 in the low power output configuration.
I feel this is a much better alternative than the Ramsey LPA-1 because it provides much lower harmonic output and it is relitivly bullet proof to antenna mismatches which has been known to destroy LPA-1s without the slightest warning.
The PCB board is a single sided copper board etched or grinded out to the shown layout. The board size is 3 3/8" x 1 3/8" but anything close that can accomidate the parts without any lengthing of the lead lengths is fine.
I recommend that if you don't have a good way to make the PCB that you buy the Radio Shack PCB Etching Kit, this kit works very well for this type of application. We've used laser printer iron ons for this board, but we've found that electrical tape or the resist pens work fine.
Design and Schematic:
The amplifier is a 2 stage design. The first stage uses a high gain microwave transistor amplifier running class-A to boost a 10mw signal to about 150mw.
In the first stage the resistor R1 (1.5K) gives Q1 (mpf-901 or mrf-901) and the Ramsey transmitter a nice stable input/output load to look at that should smooth out missmatches between the transmitter and the amp (note that this type of matching is only workable at flea power levels.. < 50mw.) R2 (20K) provides the bias voltage making the amp class-A. Current is fed to the stage through R3 (300ohms) with a ferrite bead on the power side to help keep RF out of the power grid. An inductor of 1uh or better can be substituted if a ferrite bead cannot be found (use only small resistor type inductors, not giant monsters from Radio Shack). The first stage is isolated from the interstage maching circuit by C12 (.001).
Intra-stage matching is done by C1, C2, and L1. This network trys to match the output impeadance of the first stage with the input impeadance of the second stage. It also provides a little bit of filtering. It should be noted here that the power output of the first stage affects it's output impeadance which is effected by the input power level. Any change in power outputs of the transmitter (most likly from frequency or power supply change) will require re-tuning of this amplifier.
The second amplifier is running Class-C pushing it's output into the output matching circuit made up of C3,C4 and L2. The output is fairly clean and can drive an antenna or another stage.
PCB board:
3 3/8" x 1 3/8"
Construction Tips:
Solder all the small low lying parts first; resistors, L3, L4, L5, L6. Then mount all the small capacitors; C5-C10, and C12. Next Q1, C1,C2,C3,C4, followed by L1, L2 and Q2. Finally add C11 and attache the input and output with coax to the connectors and/or transmitter.
Part's Layout:
for maximum output. This amplifier doesn't like to ocsillate, but this is always a possiblility. You can check for oscillation by tuning a FM radio up and down the FM radio band, if you hear multiple images of your broadcast your amplifier is in oscillation (not good).
Updates and Modifications
I would change the design slightly if I were to build more of these amplifiers. The input is not DC isolated. I would add a .001uh cap between the input and Q1. This is a must do mod if the amp is to be used as a stand alone device (ie not hardwared ont a FM-10).
I would get rid of C12, it is not necessary since C2 blocks the DC between stages. I would move C1 to the other side of C3, this allows C2 to be adjusted without effecting the C1/L1 low pass filter. I would add another 5-50pf cap from the input side of L2 to ground, thus adding an extra element and more flexibility to the output/matching filter (I would and have done this addition on every amp that I have built with an output power of under ~3 watts, cannot get -50db down on harmonics without it.)
The modifications listed above can easly be made to the existing circuit board if done during the assembly stage. Basically you would shift Q1 and its associated parts one pad to the right on the circuit board (since C12 is no longer necessary), and add a .001uf cap between the first pad and the base of Q1 pad. C1 can easly be moved to the pad on the output side of C2. And another 5-50pf variable cap fits nicely on the input side of L2.
L6 mostlikly can be optimized, but is most likely not that critical to the overall performace of the amp.
Updated Schematic
Parts List
Resistors
R1 1.5K ohms
R2 20K ohms
R3 300 ohms
Caps
C1, C2, C3, C4, (C14) ~5-50pf
C12,(C13) .001uh
C5, C7, C9 .01uf
C6, C8, C10 .1uf
C11 10uf
Inductors
L1 .2uh adjustable digikey...
L2 .2uh fixed coil...
L3,L4,L6 10uh Moulded Inductor
L5 3 turns of #22 enamal wire through Ferrite
Bead.
Transistors
Q1 mpf901 -or- mrf901
Q2 2sc1970
The follwing is a very easy to build amplifier that was designed to follow a Ramsey FM-10 and FM-25 transmitter. It is built on top of a simple PCB board surface style (all parts tacked on top, no holes in PCB.) The performance is excellent with power levels of up to 1.5 watts achevable and harmonic suppression greater than 50db. Using this amp in conjunction with an Ramsey FM-10/25 can provide you with the ideal micro power radio station with usable range of up to 2 miles or more. If you use this unit to amplify a Ramsey FM-25, build the FM-25 in the low power output configuration.
I feel this is a much better alternative than the Ramsey LPA-1 because it provides much lower harmonic output and it is relitivly bullet proof to antenna mismatches which has been known to destroy LPA-1s without the slightest warning.
The PCB board is a single sided copper board etched or grinded out to the shown layout. The board size is 3 3/8" x 1 3/8" but anything close that can accomidate the parts without any lengthing of the lead lengths is fine.
I recommend that if you don't have a good way to make the PCB that you buy the Radio Shack PCB Etching Kit, this kit works very well for this type of application. We've used laser printer iron ons for this board, but we've found that electrical tape or the resist pens work fine.
Design and Schematic:
The amplifier is a 2 stage design. The first stage uses a high gain microwave transistor amplifier running class-A to boost a 10mw signal to about 150mw.
In the first stage the resistor R1 (1.5K) gives Q1 (mpf-901 or mrf-901) and the Ramsey transmitter a nice stable input/output load to look at that should smooth out missmatches between the transmitter and the amp (note that this type of matching is only workable at flea power levels.. < 50mw.) R2 (20K) provides the bias voltage making the amp class-A. Current is fed to the stage through R3 (300ohms) with a ferrite bead on the power side to help keep RF out of the power grid. An inductor of 1uh or better can be substituted if a ferrite bead cannot be found (use only small resistor type inductors, not giant monsters from Radio Shack). The first stage is isolated from the interstage maching circuit by C12 (.001).
Intra-stage matching is done by C1, C2, and L1. This network trys to match the output impeadance of the first stage with the input impeadance of the second stage. It also provides a little bit of filtering. It should be noted here that the power output of the first stage affects it's output impeadance which is effected by the input power level. Any change in power outputs of the transmitter (most likly from frequency or power supply change) will require re-tuning of this amplifier.
The second amplifier is running Class-C pushing it's output into the output matching circuit made up of C3,C4 and L2. The output is fairly clean and can drive an antenna or another stage.
PCB board:
3 3/8" x 1 3/8"
Construction Tips:
Solder all the small low lying parts first; resistors, L3, L4, L5, L6. Then mount all the small capacitors; C5-C10, and C12. Next Q1, C1,C2,C3,C4, followed by L1, L2 and Q2. Finally add C11 and attache the input and output with coax to the connectors and/or transmitter.
Part's Layout:
for maximum output. This amplifier doesn't like to ocsillate, but this is always a possiblility. You can check for oscillation by tuning a FM radio up and down the FM radio band, if you hear multiple images of your broadcast your amplifier is in oscillation (not good).
Updates and Modifications
I would change the design slightly if I were to build more of these amplifiers. The input is not DC isolated. I would add a .001uh cap between the input and Q1. This is a must do mod if the amp is to be used as a stand alone device (ie not hardwared ont a FM-10).
I would get rid of C12, it is not necessary since C2 blocks the DC between stages. I would move C1 to the other side of C3, this allows C2 to be adjusted without effecting the C1/L1 low pass filter. I would add another 5-50pf cap from the input side of L2 to ground, thus adding an extra element and more flexibility to the output/matching filter (I would and have done this addition on every amp that I have built with an output power of under ~3 watts, cannot get -50db down on harmonics without it.)
The modifications listed above can easly be made to the existing circuit board if done during the assembly stage. Basically you would shift Q1 and its associated parts one pad to the right on the circuit board (since C12 is no longer necessary), and add a .001uf cap between the first pad and the base of Q1 pad. C1 can easly be moved to the pad on the output side of C2. And another 5-50pf variable cap fits nicely on the input side of L2.
L6 mostlikly can be optimized, but is most likely not that critical to the overall performace of the amp.
Updated Schematic
Parts List
Resistors
R1 1.5K ohms
R2 20K ohms
R3 300 ohms
Caps
C1, C2, C3, C4, (C14) ~5-50pf
C12,(C13) .001uh
C5, C7, C9 .01uf
C6, C8, C10 .1uf
C11 10uf
Inductors
L1 .2uh adjustable digikey...
L2 .2uh fixed coil...
L3,L4,L6 10uh Moulded Inductor
L5 3 turns of #22 enamal wire through Ferrite
Bead.
Transistors
Q1 mpf901 -or- mrf901
Q2 2sc1970
Schematics - FM amplifiers
Hook this one to any above VCO and voila, you have a 4W FM LPFM transmitter.
Schematics - Stereo encoders 2
another cool stereo encoder schematic. Looks better than the above model. It has a bit of noise, filtering is not sufficient, but otherwise it can be made to work extremely nicely. Substitute XR2208!
Cyber Max 15W
RF Power Amplifier 1.3W to 6W by 2SC1970
This amplifier is based on the transistor 2SC1970 and 2N4427.
The output power is about 1.3W and the input driving power is 30-50mW.
You can use other transistor as 2SC1971 and get much more output power.
1.3W will still get your RF signal quit far and I advice you to use a good 50 ohm resistor as dummy load.
Make sure it can take up to 5-10W, else it will be a hot resistor.
You MUST use an antenna or 50 ohm dummy resistor while testing else you burn up the transistor.
In all RF system and specially in RF amplifiers, it is very important to have a stable power supply and making sure you won’t get any RF out on the power line. The Capacitor C12 and C13 will stabilise the DC power supply. L1, C10, C11 and L3 with C8, C9 will also prevent RF from leaking out to the powerline and cause oscillation or disturbances. L1 and L3 should be ferrite chokes or inductance’s about 1 to 10 uH.
Transistor Q1 will act as a buffer amplifier, because I don’t want to load the previous stage to much.
The input RF signal is passin C1 and F1 which is a small ferrite pearl where the wire just passing through.
F1 with C2 will act as an impedance matching for Q1.
F1 can be substituted with a coil as L4, but in my test I found that the ferrite pearls gave best performances.
L2 is nit a critical component and any coil from 2-10uH will do the job. Q1 will amplify the input signal from 50mW to about 200mW.
Q1 can amplify much more, but It doesn’t need to do that because 200mW is good for the final transistor.
If you want higher power you can decrease the resistor R2.
If you look at Q2 you will also find a ferrite pearl F2 at the base to emitter. This ferrite pearls is to set the DC voltage to zero and be a high impedance for RF signals. I wounded the wire 4 times around this small ferrite pearl. You can substitute it with a coil of 1uH or more.
C4, C5 and L4 forms an input matching unit for the transistor. Not much we can do about that…
At the output of the final transistor Q2 you will find 2 coils L5 and L6.
Together with C6 and C7, they form an impedance unit for the antenna and also for the transistor.
The output power is about 1.3W and the input driving power is 30-50mW.
You can use other transistor as 2SC1971 and get much more output power.
1.3W will still get your RF signal quit far and I advice you to use a good 50 ohm resistor as dummy load.
Make sure it can take up to 5-10W, else it will be a hot resistor.
You MUST use an antenna or 50 ohm dummy resistor while testing else you burn up the transistor.
In all RF system and specially in RF amplifiers, it is very important to have a stable power supply and making sure you won’t get any RF out on the power line. The Capacitor C12 and C13 will stabilise the DC power supply. L1, C10, C11 and L3 with C8, C9 will also prevent RF from leaking out to the powerline and cause oscillation or disturbances. L1 and L3 should be ferrite chokes or inductance’s about 1 to 10 uH.Transistor Q1 will act as a buffer amplifier, because I don’t want to load the previous stage to much.
The input RF signal is passin C1 and F1 which is a small ferrite pearl where the wire just passing through.
F1 with C2 will act as an impedance matching for Q1.
F1 can be substituted with a coil as L4, but in my test I found that the ferrite pearls gave best performances.
L2 is nit a critical component and any coil from 2-10uH will do the job. Q1 will amplify the input signal from 50mW to about 200mW.
Q1 can amplify much more, but It doesn’t need to do that because 200mW is good for the final transistor.
If you want higher power you can decrease the resistor R2.
If you look at Q2 you will also find a ferrite pearl F2 at the base to emitter. This ferrite pearls is to set the DC voltage to zero and be a high impedance for RF signals. I wounded the wire 4 times around this small ferrite pearl. You can substitute it with a coil of 1uH or more.
C4, C5 and L4 forms an input matching unit for the transistor. Not much we can do about that…
At the output of the final transistor Q2 you will find 2 coils L5 and L6.
Together with C6 and C7, they form an impedance unit for the antenna and also for the transistor.

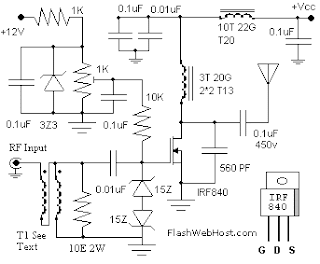

60W RF Linear amplifier
The 60 Watt linear amplifier is simple all solid state circuit using power mosfet IRF840. The IRF series of power transistors are available in various voltage and power ratings. A single IRF840 can handle maximum power output of 125 watts. Since these transistors are used in inverters and smps they are easily available for around Rs: 20/-.
The IRF linear amplifier can be connected to the out put of popular VWN-QRP to get an output of 60 Watts. The circuit draws 700 ma at 60 Volt Vcc. Good heat sink is a must for the power transistor.
Alignment of the circuit is very easy. Connect a dummy load to the out put of the circuit. You can use some small bulb like 24V 6Watts as the dummy load. I have even used 230V 60Watts bulb as dummy load with my IRF840 power amplifier working at 120Volts. Adjust the 10K preset to get around 100 ma Drain current. I used gate voltage of 0.8V with my linear amplifier. A heigh gate voltage can make the power transistor get distroyed by self oscillation. So gate voltage must be below 2V and fixing at 1V will be safe.
Bifalar transformaer T1 is wound with 8 turns 26SWG on 1.4 x 1 balun core.
The coil on the drain of IRF is 3 turns 20 SWG wound on 4 number of T13.9 torroids (two torroids are stacked to form a balun core). The RFC at the Vcc line is 20 Turns 20 SWG wound on T20 torroid.Thank you
The IRF linear amplifier can be connected to the out put of popular VWN-QRP to get an output of 60 Watts. The circuit draws 700 ma at 60 Volt Vcc. Good heat sink is a must for the power transistor.
Alignment of the circuit is very easy. Connect a dummy load to the out put of the circuit. You can use some small bulb like 24V 6Watts as the dummy load. I have even used 230V 60Watts bulb as dummy load with my IRF840 power amplifier working at 120Volts. Adjust the 10K preset to get around 100 ma Drain current. I used gate voltage of 0.8V with my linear amplifier. A heigh gate voltage can make the power transistor get distroyed by self oscillation. So gate voltage must be below 2V and fixing at 1V will be safe.
Bifalar transformaer T1 is wound with 8 turns 26SWG on 1.4 x 1 balun core.
The coil on the drain of IRF is 3 turns 20 SWG wound on 4 number of T13.9 torroids (two torroids are stacked to form a balun core). The RFC at the Vcc line is 20 Turns 20 SWG wound on T20 torroid.Thank you

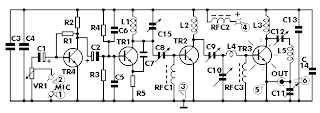

FM Transmitter 4W by 2N3553
This is a small but quite powerful FM transmitter having three RF stages incorporating an audio preamplifier for better modulation. t has an output power of 4 Watts and works off 12-18 VDC which makes it easily portable. It is the ideal project for the beginner who wishes to get started in the fascinating world of FM broadcasting and wants a good basic circuit to experiment with.
Technical Specifications – Characteristics
Modulation type: …….. FM
Frequency range: …. 88-108 MHz
Working voltage: ….. 12-18 VDC
Maximum current: ……. 450 mA
Output power: ………… 4 W
Parts List
TR1 = TR2 = 2N2219 NPN
TR3 = 2N3553 NPN
TR4 = BC547/BC548 NPN
D1 = 1N4148 diode *
MIC = crystalic microphone
Technical Specifications – Characteristics
Modulation type: …….. FM
Frequency range: …. 88-108 MHz
Working voltage: ….. 12-18 VDC
Maximum current: ……. 450 mA
Output power: ………… 4 W
Parts List
TR1 = TR2 = 2N2219 NPN
TR3 = 2N3553 NPN
TR4 = BC547/BC548 NPN
D1 = 1N4148 diode *
MIC = crystalic microphone
40 Watt Amplifier For FM Broadcast by MRF171A
This amplifier was built based on Marconi’s website, A Design for a 40W broadband VHF RF Power Amplifier for FM broadcast. A few minor tweaks were made to the schematic and a few parts were changed to what I had available (mostly surface mount components). The heatsink is from an old Motorola Mostar 800 MHz radio, and has the perfect heatsink island to match the MRF171A. Also used is a Progressive Concepts external LPF7002 low pass filter because it was also on hand. Since the MOSFET uses 28 VDC, I had to homebrew a 28 Volt / 5 Amp power supply using the schematic found in the ARRL handbook.
Tune up went exactly as stated in the how-to, with the RF power output hitting 57 Watts when driven with a stock Broadcast Warehouse 1 Watt LCD PLL transmitter at 98 MHz. Liberal use of ferrite beads and feedthru capacitors are on all RF detector, fan control and SWR control circuits.
Tune up went exactly as stated in the how-to, with the RF power output hitting 57 Watts when driven with a stock Broadcast Warehouse 1 Watt LCD PLL transmitter at 98 MHz. Liberal use of ferrite beads and feedthru capacitors are on all RF detector, fan control and SWR control circuits.

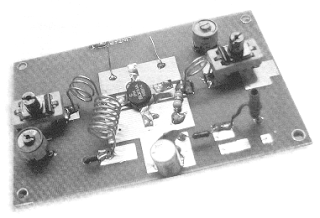

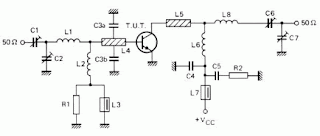

Linear FM 30Watt with BLY89
A amplifier of medium force RF for the FM, is always essential for the amateur that wants it strengthens some small transmitter, that likely it has already it manufactured! The present circuit can give force 25-30W, with control no bigger than 4-5 W.
As it appears in the analytic drawing, the amplifier is manufactured with the transistor TR1 of type LY89 of Phillips. The transistor this is specifically drawn for operation in frequencies up to 175Mhz, with very good results. His special characteristics appear below:
Tendency of operation: 18V
Current of Collector: max 3 5th
Gain: max 10dB
Force of Expense: 25-30 W
Output (order C): > 60%
Variable capacitors C1, C2, with inductor L1, constitute the coordinated circuit that adapts the exit of our transmitter in this amplifier RF. the circuit has been calculated suitably, so that it covers all band the FM with the biggest possible output. Inductor RFC1 polarize the transistor, so as to it works in order C that is to say with the biggest output. Inductor L2 in the collector of TR1, constitutes the charge of amplifier, while RFC2 prevents the RF signals escape in the line of catering. Capacitor C2 and resistance R1, protect the circuit from auto polarize.
The coordinated circuit of expense that is constituted by inductor L2 and variable capacitors C3, C4, adapts the exit of amplifier RF with the next stage that can be some amplifier RF of high force (> 100W) or a aerial.
MANUFACTURE
The manufacture of amplifier is very simple and easy. Puncture the point PCB that will pass the nutshell of TR1. Stick the capacitors, variable, the resistance, the RF tsok and the inductors. Finally you stick the TR1, being careful not overheats at the welding and blend pin his. Clean finally PCB from the residues of soldering. Make a very careful control for by any chance errors, omissions, short-circuits, chills you stick also anything other that could you make wonder why does not work the amplifier.
PARTS
C1, C2, C3, C4 = 10 -80pF
C 5 = 10nF
C6 = 1000pF
C7 = 100nF
C8 = 2200mF/35V
L1 = 1 coil with diameter of 10 mms, 1 mm
L2 = 7 coils with diameter of 10 mms, 0,8 mm
L3 = 3 coils with diameter of 10 mms, 1 mm
TR1 = BLY89
RFC = RF tsok
If all they are it includes, you connect the exit of your transmitter (3-4W) in the entry of amplifier. The exit of amplifier him you will connect in some charge (dummy load) or in the aerial, through a bridge stagnant. Be supplied with tendency 11-15V your amplifier. (Power supply it should it provides current 45th). Regulate the 4 variable (C1-C4, until you take the biggest force of expense. The amplifier is ready.

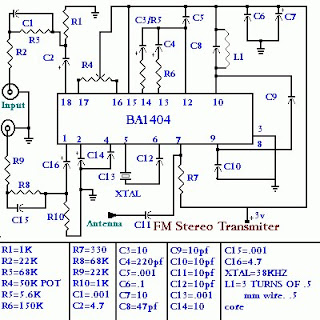

FM Stereo Transmitter with IC BA1404
You’ll find that this is a very easy project to build. It will transmit good quality sound in the FM band ( 88 – 108 mhz ). One inportant item is that the IC chip operates on 3 volts DC. The chip will get destroyed if it is operated on any voltage higher than 3.5 volts. The antenna can be a standard telescopic antenna or a 2 foot length of wire. The input is in the millivolt range and you may need to add additional pots for the inputs. I was able to use this circuit for a walkman and a portable CD player in my car. I used the headphone jack on both and varied the signal with the volume control.
To adjust the circuit tune your FM radio to a quite spot then adjust the trimmer capacitor C8 until you hear the signal that you are transmiting. When you have a strong signal adjust the resistor R4 until the stereo signal indicator lights. If the input is to high of a signal you may over drive the IC chip. Use two 15 turn pots on the input signals to bring the level down. You can balance the signal by using headphones. The inductor L1 is 3 turns of .5 mm wire on a 5 mm ferrite core.
To adjust the circuit tune your FM radio to a quite spot then adjust the trimmer capacitor C8 until you hear the signal that you are transmiting. When you have a strong signal adjust the resistor R4 until the stereo signal indicator lights. If the input is to high of a signal you may over drive the IC chip. Use two 15 turn pots on the input signals to bring the level down. You can balance the signal by using headphones. The inductor L1 is 3 turns of .5 mm wire on a 5 mm ferrite core.
Subscribe to:
Posts (Atom)
